Product Model

SRG3-00-20B-200-M0H-R

Manufacturer

CKD Corporation

Key Features

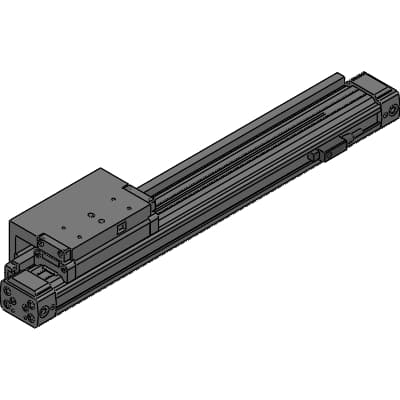

1High precision guided rodless cylinder with integrated linear guide.
2Adjustable stroke length up to 200 mm with shock absorber for enhanced stability.
3Compatible with compressed air, double acting, and max working pressure of 0.7 MPa.
4Repeatability of ±0.05 mm with air cushion for smooth operation.
5Suitable for applications requiring precise motion control and high accuracy.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Model No.	SRG3	Mounting	00: Basic
Bore size	20mm	Port thread	Blank: Rc thread
Cushion	B: With two-sided cushion	Stroke	200mm
Switch model No.	M0, reed, 1-color LED, 2-wire	Lead wire direction	H: Straight
Lead wire length	Blank: 1 m (standard)	Switch quantity	R: 1 on R side
Option	None	Option 2	None
Cushion needle position	Blank: Port position F (standard), needle position F (standard)	Stroke position	0mm
Product information	Product information	A	44mm
B	14.0mm	CA	54mm
CB	40.0mm	CC	50.0mm
DB	16mm	DC	16mm
E	10.5mm	G	31.0mm
HA	8.5mm	HB	18.5mm
HC	14.0mm	J	22.0mm
KA	74.0mm	L	169mm
L + stroke	369mm	LL	171.5mm
LL + stroke	371.5mm	LA	2.5mm
M	M4 depth 6.5	P	148mm
P + STROKE	230mm	PQ	24.5mm
Q	Rc 1/8	TA	100mm
TB	60mm	TC	61.5mm
TD	18mm	TE	M4 depth 6
TH	8.5mm	TJ	10.0mm
TK	15mm	TM	44mm
TN	17.5mm	YA	6 depth 6
YC	7mm	SA	0mm
SB	0mm	TF	0mm
TG	0mm	TY	0mm
U	0mm	V	0mm
W	0mm	W + STROKE	0mm
X	0.0mm	HD	52.5mm
RD	72.5mm	PA	29.3mm
PB	0.0mm	PP	29.5mm
SC	0.0mm	SD	0.0mm
SE	0.0mm	SF	0.0mm
SGMAX	0.0mm	SGMIN	0.0mm
SH	-	SJ	0mm
SK	0.0mm	SL	0.0mm
SM	0mm	SN	0mm
SP	-	SQ	0.0mm
SR	0mm	ST	0mm
SU	0mm	SV	0.0mm

Specifications may be subject to change without notice
