Product Model

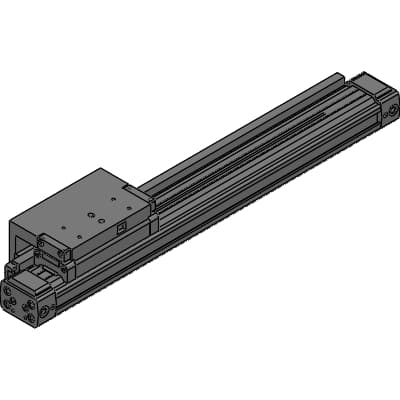

SRG3-00-16B-200
Key Features
- 1High precision linear guide for accurate movement.
- 2Adjustable stroke length from 200 to 800 mm.
- 3Durable construction with stainless steel cylinder tube.
- 4Cushion included for smooth operation and reduced impact sound.
- 5Compatible with compressed air, suitable for double-acting applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | SRG3 | Mounting | 00: Basic |
| Bore size | 16mm | Port thread | Blank: M5 |
| Cushion | B: With two-sided cushion | Stroke | 200mm |
| Option | None | Option 2 | None |
| Cushion needle position | Blank: Port position F (standard), needle position F (standard) | Stroke position | 0mm |
| Product information | Product information | A | 37mm |
| B | 12.0mm | CA | 47mm |
| CB | 35.0mm | CC | 45.0mm |
| DB | 14mm | DC | 12mm |
| E | 8.5mm | G | 27.0mm |
| HA | 6.0mm | HB | 14.0mm |
| HC | 12.0mm | J | 17.5mm |
| KA | 66.0mm | L | 149mm |
| L + stroke | 349mm | LL | 152.0mm |
| LL + stroke | 352.0mm | LA | 3.0mm |
| M | M3 depth 5 | P | 132mm |
| P + STROKE | 332mm | PQ | 21mm |
| Q | M5 | TA | 88mm |
| TB | 48mm | TC | 54.5mm |
| TD | 15mm | TE | M3 depth 6 |
| TH | 7.0mm | TJ | 9.5mm |
| TK | 10mm | TM | 40mm |
| TN | 14.5mm | YA | 4 depth 4 |
| YC | 5mm | SA | 0mm |
| SB | 0mm | TF | 0mm |
| TG | 0mm | TY | 0mm |
| U | 0mm | V | 0mm |
| W | 0mm | W + STROKE | 0mm |
| X | 0.0mm | PA | 26.3mm |
| SC | 0.0mm | SD | 0.0mm |
| SE | 0.0mm | SF | 0.0mm |
| SGMAX | 0.0mm | SGMIN | 0.0mm |
| SH | - | SJ | 0mm |
| SK | 0.0mm | SL | 0.0mm |
| SM | 0mm | SN | 0mm |
| SP | - | SQ | 0.0mm |
| SR | 0mm | ST | 0mm |
| SU | 0mm | SV | 0.0mm |
Specifications may be subject to change without notice
