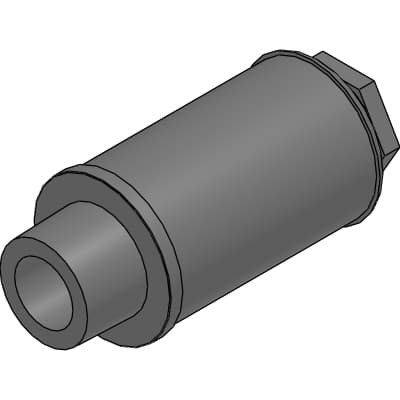

Product Model
SLW-15A-H
Key Features
- 1High noise reduction effect of 30 dB(A) or more.
- 2Compact and lightweight design with an outer diameter of 28 mm.
- 3Durable construction with a maximum working pressure of 1.0 MPa.
- 4Easy installation with a 1/2-inch mounting thread.
- 5Suitable for compressed air applications in various industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | SLW-15A-H | Port size | R1/2 |
| A | 71.4mm | B | 58.4mm |
| C | 28.0mm | D | 19mm |
| E | 15.0mm |
Specifications may be subject to change without notice
