Product Model

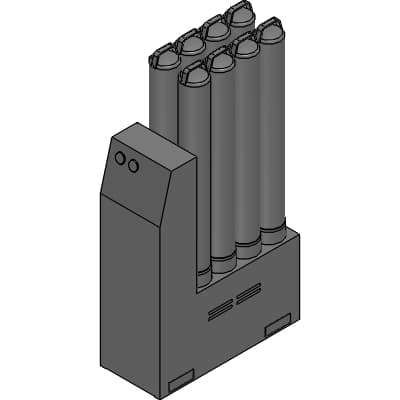

SHD3100-G04-20-E1-AC100V
Key Features
- No key features available for this product.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | SHD3 | Flow rate classification | 100 : 10 m3/min(ANR) |
| Sensor | G : Temperature and humidity sensor | Inlet air pressure | 04 : 0.4 MPa |
| Outlet pressure dew point | 20 : -20°C | Filter option | E1 : Without accessory filter |
| Voltage specification option | Blank : None | English text option | Blank : None |
| Bolt nut option | Blank : None | Voltage | AC100V : 100 VAC |
| Infotext | https://www.ckd.co.jp/kiki/en/product/detail/85/SHD?t=list&cid=75&sid=0 | Port size | Rc1 1/2 |
| A | 845mm | B | 1559mm |
| C | 360mm | D | 20mm |
| E | 1163mm | F | 585mm |
| G | 320mm | H | φ12mm |
| I | 213mm | J | 266.5mm |
| K | 153.5mm | L | 683mm |
| M | 100mm |
Specifications may be subject to change without notice
