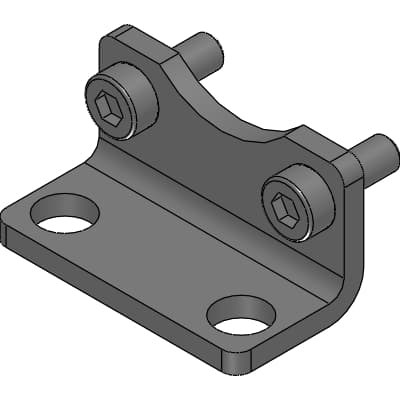

Product Model
SCWS-LB-32lb

Key Features
- 1Designed with safety and convenience in mind, enhancing user experience.
- 2New cylinder series focusing on environmental protection.
- 3Meets international standards for quality and performance.
- 4Suitable for positioning, conveyance, press-fitting, and semi-automated facilities.
- 5Exhausting orifice and cushion regulate needle valve on the same plane for easy installation and adjustment.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model | SCWS-LB-32 | Bore | 32 |
| AB | 7.0mm | AL | 24.5mm |
| AR | 15mm | AG | 58.0mm |
| TR | 32mm | E | 45mm |
| AT | 4mm | AH | 33.5mm |
| AO | 6.0mm | AU | 16mm |
| WF | 7mm | XA | 67mm |
| SA | 76mm | G | M6x16mm |
Specifications may be subject to change without notice
