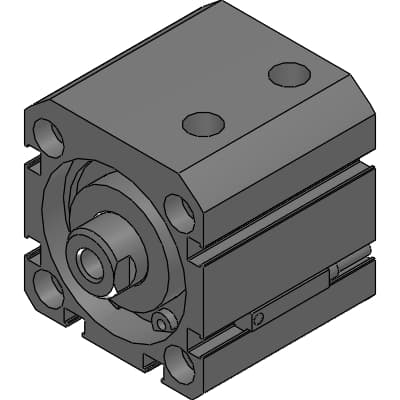

Product Model
SCWS-L-80-5-T0H-R
Key Features
- 1High Precision: Conforms to ISO6432 standard for precise performance.
- 2Durable Construction: Made from stainless steel for long-lasting reliability.
- 3Versatile Mounting: Offers various mounting styles including axial foot and rod eye with thread type.
- 4Easy Installation: Switches can be optionally mounted to meet different needs.
- 5Enhanced Safety: Equipped with a reed switch and locking gasket for secure operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | SCWS-L | Bore size | 80mm |
| Stroke | 5mm | POS | 0mm |
| Cushion | Blank: With cushion rubber | Switch model No. | T0: Reed, 1-color display, 2-wire |
| Lead wire direction | H: Straight | Lead wire length | Blank: 1 m (standard) |
| Switch quantity | R: 1 included on rod side | Option | Blank: Rod end female thread |
| Option | None | Mounting | Blank: No mounting bracket |
| ZB | 64mm | ZA | 54mm |
| C | 18.5mm | D | 14.0mm |
| EE | G1/8mm | E | 94.0mm |
| E1 | 0mm | EA | 0.0mm |
| EB | 0.0mm | BB | 20mm |
| FA | 47.5mm | FB | 38.5mm |
| RR | 8.7mm | LA | ⌀14 spot face depth 5mm |
| K | 125mm | KA | M10 depth 15mm |
| KK | M12 depth 21mm | M | 22mm |
| MM | 25mm | TG | 72.0mm |
| WF | 10mm | A | 28mm |
| CC | 25mm | H | 24mm |
| KKK | M16mm | M1 | 22mm |
| T | 10mm |
Specifications may be subject to change without notice
