Product Model

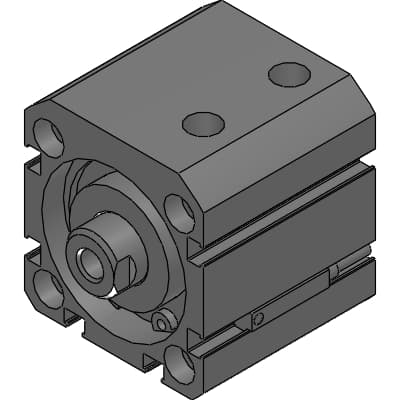

SCWS-L-100-5-T0H-R
Key Features
- 1Conforms to ISO15552 Standard: Ensures high-quality and reliability in harsh environments.
- 2Dust-Proof Design: Protects against dust and debris for extended performance.
- 3Powerful Scraping Capability: Efficiently handles tough materials with minimal effort.
- 4Versatile Bore Sizes: Available in φ32, φ40, φ50, φ63, φ80, and φ100 for various applications.
- 5Customizable Stroke Length: Adjustable stroke length options for tailored performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | SCWS-L | Bore size | 100mm |
| Stroke | 5mm | POS | 0mm |
| Cushion | Blank: With cushion rubber | Switch model No. | T0: Reed, 1-color display, 2-wire |
| Lead wire direction | H: Straight | Lead wire length | Blank: 1 m (standard) |
| Switch quantity | R: 1 included on rod side | Option | Blank: Rod end female thread |
| Option | None | Mounting | Blank: No mounting bracket |
| ZB | 77mm | ZA | 67mm |
| C | 24.0mm | D | 19.0mm |
| EE | G1/8mm | E | 112.8mm |
| E1 | 0mm | EA | 0.0mm |
| EB | 0.0mm | BB | 22mm |
| FA | 56.9mm | FB | 45.7mm |
| RR | 8.7mm | LA | ⌀14 spot face depth 5mm |
| K | 150mm | KA | M10 depth 15mm |
| KK | M12 depth 21mm | M | 27mm |
| MM | 30mm | TG | 89.0mm |
| WF | 10mm | A | 28mm |
| CC | 25mm | H | 24mm |
| KKK | M16mm | M1 | 27mm |
| T | 10mm |
Specifications may be subject to change without notice
