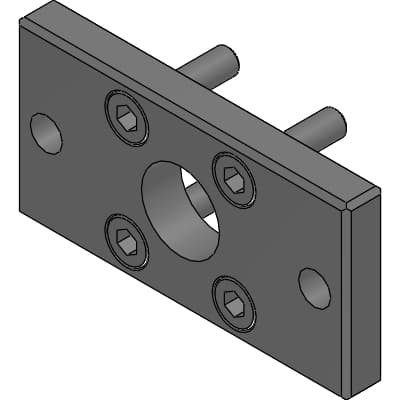

Product Model
SCWS-FB-20fb

Key Features
- 1Advanced precision with ±30 seconds index accuracy and ±5 seconds repeatability.
- 2Robust design withstanding ambient temperatures from 0 to 45°C and humidity levels up to 85% RH.
- 3Environmental protection compliant with ISO15552 standards for safe operation.
- 4High torque output with continuous output torque ranging from 2 to 6 N•m.
- 5Versatile application in various industries including positioning, conveyance, and semi-automated facilities.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| MODEL | SCWS-FB-20 | Bore | 20mm |
| E | 35mm | D | 16mm |
| UF | 68mm | TF | 55mm |
| FB | 6.6mm | MF | 8mm |
| WF | 6mm | ZF | 51mm |
| G | M5x16mm |
Specifications may be subject to change without notice
