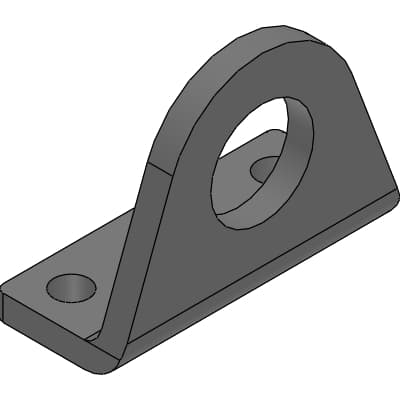

Product Model
SCWR-LS-16
Key Features
- 1Achieve precise control with the SCWR-LS-16's tight stroke tolerance and high repeatability.
- 2Designed to withstand harsh environments, the cylinder operates within a wide temperature range from -10°C to 60°C.
- 3Suitable for various industrial uses, including double-acting and single-rod configurations.
- 4Features a compact standard switch and easy mounting options, ensuring seamless integration into your system.
- 5Built with stainless steel, ensuring long-lasting performance and resistance to corrosive gases and dust.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model | SCWR-LS-16 | Bore | 16mm |
| LA | 8mm | LB | 6mm |
| LC | 14mm | LD | 5.5mm |
| LF | 32mm | LH | 20mm |
| LK | 15mm | LR | 32mm |
| LS | 44mm | LT | 4mm |
Specifications may be subject to change without notice
