Product Model

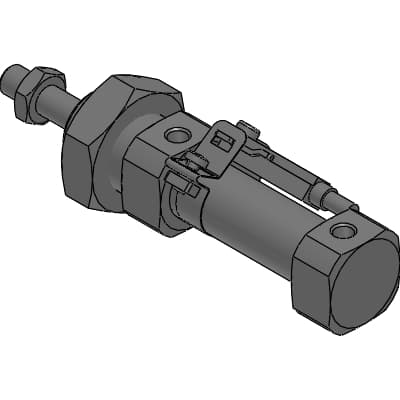

SCWR-L-00-16-10-T0H-R(0)
Key Features
- 1Meets international standards for interchangeability and ease of use.
- 2Durable and resistant to corrosion, suitable for multiple environments.
- 3Programmable controller with serial connection and no indicator lamp.
- 4Suitable for double acting operations with switch, ideal for clean compressed air applications.
- 5Switch is directly clipped into switch bracket with three-side contact, ensuring safe and reliable operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | SCWR-L | Mounting | 00: Basic |
| Bore size | 16mm | Stroke | 10mm |
| POS | 0mm | Switch model No. | T0: Reed, 1-color display, 2-wire |
| Lead wire direction | H: Straight | Lead wire length | Blank: 1 m (standard) |
| Switch quantity | R: 1 on rod side | A | 16mm |
| B | 10mm | BF | 17mm |
| D | 21.5mm | E | 18.0mm |
| EE | M5 | G | 13.6mm |
| J | 13.6mm | KV | 24mm |
| KK | M6×1 | KW | -mm |
| BE | M16×1.5 | L | -mm |
| MR | -mm | CD | -mm |
| EW | -mm | F | -mm |
| MD | 16mm | MM | 6mm |
| D’ | 21.5mm | E‘ | 18.0mm |
| QA | 9.1mm | QB | 9.1mm |
| T | 3.6mm | WF | 22mm |
| XC | -mm | LL | 51.0mm |
| X | 89mm | CA | -mm |
| RD | 2.0mm | HD | 3.5mm |
| GC | 0.0mm | GD | 0.0mm |
| P | 15.5mm | P1 | -mm |
| Pθ | -° |
Specifications may be subject to change without notice
