Product Model

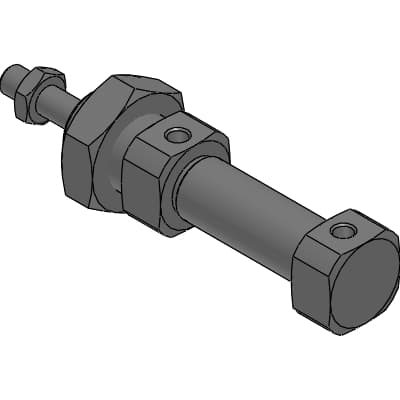

SCWR-00-25-10(0)
Key Features
- 1Meets international standards for interchangeability and ease of use.
- 2Bright silver finish provides a sophisticated appearance.
- 3Switch holder and locking gasket ensure safe and adjustable operation.
- 4Suitable for various environments and applications.
- 5Interchangeable bore sizes (φ8 to φ25) and adjustable stroke lengths.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | SCWR | Mounting | 00: Basic |
| Bore size | 25mm | Stroke | 10mm |
| POS | 0mm | A | 22mm |
| B | 17mm | BF | 16mm |
| D | 34.0mm | E | 30.0mm |
| EE | G1/8 | G | 16.0mm |
| J | 16.0mm | KV | 32mm |
| KK | M10×1.25 | KW | 8mm |
| BE | M22×1.5 | L | -mm |
| MR | -mm | CD | -mm |
| EW | -mm | F | -mm |
| MD | 22mm | MM | 12mm |
| D’ | 34.0mm | E‘ | 30.0mm |
| QA | 8.0mm | QB | 8.0mm |
| T | 6.0mm | WF | 28mm |
| XC | -mm | LL | 69.1mm |
| X | 119.1mm | CA | -mm |
| P | 19.8mm | P1 | 22mm |
| Pθ | 18° |
Specifications may be subject to change without notice
