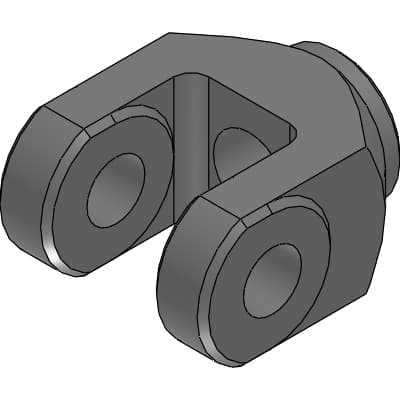

Product Model
SCM-Y-100
Key Features
- 1Available in φ20, φ25, φ32, and φ40 bore sizes to suit diverse industrial needs.
- 2Designed for efficient pull operations with a stroke length of up to 600 mm.
- 3Equipped with a knob for easy adjustment and mountable with four bolts for better workability.
- 4Capable of fine adjustment up to 6 mm in the direction of stroke length for precise control.
- 5Built with a slim body design for simplicity and functionality in demanding industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | SCM-Y-100 | Bore size | 100 |
| A | 79mm | AB | 24.0mm |
| CA | 55mm | CD | 22mm |
| CV | 64mm | CW | 32mm |
| E | 44mm | KK | M26x1.5 |
| MB | 31.0mm | RR | 24.0mm |
| RS | -mm | Applicable pin No. | SCM-P-100 |
| Weight | 909g |
Specifications may be subject to change without notice
