Product Model

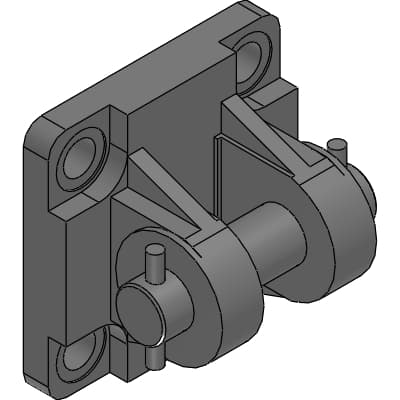

SCG-B2-80
Key Features
- 1Double Acting Design: The SCG-B2-80 offers double acting functionality for precise control and efficient operation.
- 2Customizable Stroke Lengths: Available in various stroke lengths, including 700 mm, to meet specific application requirements.
- 3High-Pressure Performance: With a maximum working pressure of 1.0 MPa, it ensures reliable performance in demanding applications.
- 4Robust Construction: Built with stainless steel piston rods for durability and resistance to corrosion.
- 5Versatile Mounting Options: Compatible with various mounting styles, including axial foot type and head side trunnion type, for flexible installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | SCG-B2-80 | Applicable bore size | 80mm |
| C | 11.0mm | CD | 22mm |
| CF | 42mm | CI | 26mm |
| CV | 60mm | CW | 30mm |
| D | 17mm | F | 15mm |
| G | 8.5mm | K | 95mm |
| MR | 23.0mm | SD | 72.0mm |
| WEIGHT | 1.52kg |
Specifications may be subject to change without notice
