Product Model

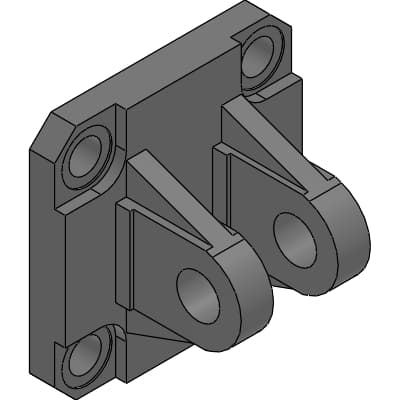

S1-B2-40
Key Features
- No key features available for this product.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | S1-B2-40 | Applicable bore size | 40mm |
| C | 9mm | CD | 12mm |
| CF | 32mm | CI | 18mm |
| CV | 36mm | CW | 18mm |
| D | 14mm | F | 10mm |
| G | 6.5mm | K | 57mm |
| MR | 12mm | SD | 40.5mm |
| WEIGHT | 0.36kg |
Specifications may be subject to change without notice
