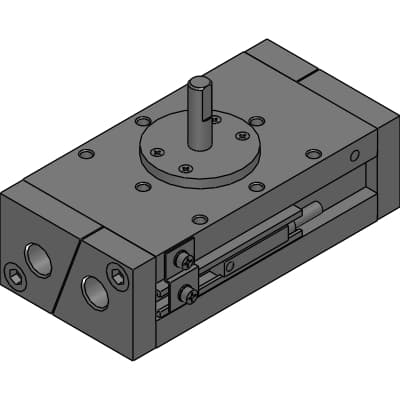

Product Model
RRC-8-90-T0H-R
Key Features
- 1Compact and thin design for space-saving installation.
- 2Stable torque and minimal internal/external leakages.
- 3Long service life due to unique rack and pinion mechanism.
- 4Adjustable oscillating angle available as an option.
- 5Standard rubber or air cushion for added durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | RRC | Size | 8 |
| Effective torque | 0.7N*m | Oscillating angle | 90: 90°degree |
| Switch model No. | T0: Reed, 1-color LED, 2-wire | Lead wire direction | H: Straight |
| Lead wire length | Blank: 1 m (standard) | Switch quantity | R: With clockwise rotation detection 1 piece |
| Option | None | Position of angle | 0degree |
| Product information | Product information | A | 94mm |
| LD | 30.0mm | RD | 30.0mm |
| B | -mm | C | -mm |
| D | -mm | E | -mm |
| F | -mm | G | -mm |
| H | -mm | I | -mm |
| J | -mm | K | -mm |
| L | -mm | M | -mm |
| N | -mm | P | -mm |
| R | -mm | S | - |
| T | -mm | U | -mm |
| W | -mm | LMIN | 10.7mm |
| LMAX | 11.5mm | AA | 4.0mm |
| Hexagon head bolt for adjustable angle | M5x0.5 |
Specifications may be subject to change without notice
