Product Model

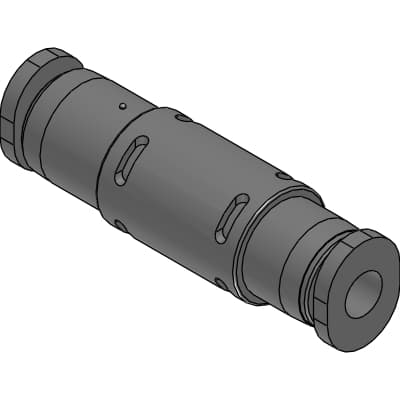

QEL-44P-S
Key Features
- 1Compact and space-saving inline type with built-in φ4 push-in fittings.
- 2Effective in preventing condensation caused by adiabatic expansion.
- 3Available in atmospheric release type and with exhaust port fittings.
- 4Ozone-resistant materials used for degradation prevention.
- 5Compliant with RoHS2 Directive for environmental sustainability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | QEL | Compatible Tube O.D. | 44P : φ4 plug |
| Option | S : Atmosphere release | φD tube O.D. | φ4mm |
| B | 41.3mm | L1 | 4.1mm |
| L2 | 19.0mm | L3 | -mm |
| φP1 | 9.0mm | φP2 | -mm |
| φP3 | -mm | φP4 | -mm |
| C | 11.3mm | H | 10mm |
| E | -mm | X | 9.8mm |
| Y | 7.8mm |
Specifications may be subject to change without notice
