Product Model

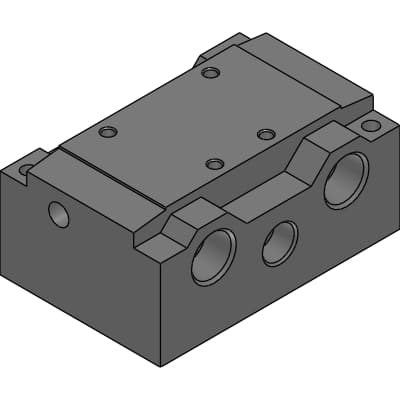

PV5S-CB2-A06
Key Features
- 1Compact and lightweight design for easy installation.
- 2Energy-saving technology with reduced power consumption.
- 3Improved operability and longer lifespan.
- 4ISO-compliant and environmentally friendly (RoHS compliant).
- 5Dust and jet-proof with IP65 protection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | CB2 | Symbol | A06 |
| Type | Side piping | Option P/A/B port | Rc3/4 |
| Option R1/R2 port | Rc3/4 | Weight | 1.40kg |
| A | 40mm | B | 3/4 |
| C | 128mm | D | 142mm |
| E | 72mm | F | 86mm |
| G | 7.5mm | H | 53mm |
| J | 55mm | K | 84mm |
| L | 42mm | M | 62mm |
| N | 63mm | P | 3/4 |
| Q | 3/4 | R | 30mm |
Specifications may be subject to change without notice
