Product Model

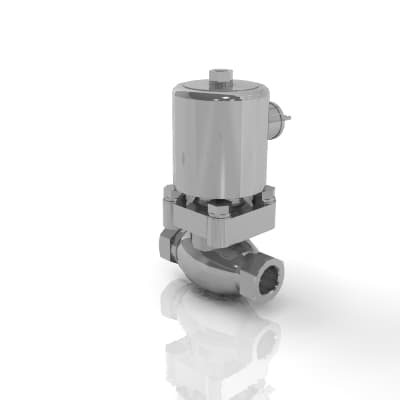

PKA-04-27-AC100V
Key Features
- 1High-performance design for optimal results.
- 2Durable construction with high-quality materials.
- 3Compatible with 100V AC, 50/60 Hz electrical specifications.
- 4Stable operation under low and high pressures.
- 5Ideal for vertical orientation with the coil on top.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | PKA | Port size | 04 : Rc1/2 |
| Body material | Blank : Bronze | Coil Option | Blank : Open frame lead wire coil |
| Voltage | AC100V : 100 VAC 50/60 Hz | A | 90mm |
| B | 126mm | C | 29mm |
| D | 88mm | E | 23mm |
| F | -mm | G | 60mm |
| H | 49mm |
Specifications may be subject to change without notice
