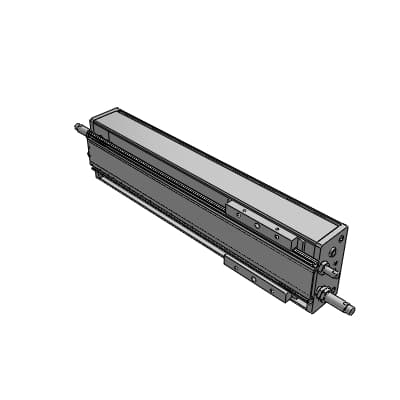

Product Model
NSR-1-30-300
Key Features
- 1High accuracy with an accuracy range of 0.005 to 0.7.
- 2Durable stainless steel construction for long-lasting performance.
- 3Compact design with a large relief flow rate for stable flow characteristics.
- 4Semi-automatic automation grade for easy operation and maintenance.
- 5Suitable for gas media applications with precise pressure control.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| X-axis head number | 1: 1 pc. | Payload (kg) | 30kg |
| X-axis stroke (1 mm pitch) | 300mm | Position | 0mm |
| Pitch between heads (1 mm pitch) | 0mm | Adjustable stroke block | Blank: None |
| Port position, speed controller, mounting bracket | Blank: Port position L | Cableveyor | Blank: None |
| Switch | Blank: 2-wire proximity T2H3 (with 2 pcs.) | Product information | Product information |
| SA (T-slot 1) | 10.5mm | SB (T-slot 1) | 17.6mm |
| SC (T-slot 1) | 8mm | SD (T-slot 1) | 9.0mm |
| SE (T-slot 1) | 2.0mm | NH (T-slot 1) | 17mm |
| NM (T-slot 1) | M10 | NT (T-slot 1) | 8.0mm |
| SA (T-slot 2) | 5.5mm | SB (T-slot 2) | 9.5mm |
| SC (T-slot 2) | 4.0mm | SD (T-slot 2) | 4.5mm |
| SE (T-slot 2) | 2.5mm | NH (T-slot 2) | 9mm |
| NM (T-slot 2) | M5 | NT (T-slot 2) | 4.0mm |
| A | 165mm | C | 105mm |
| D | 110mm | DA | M10 |
| DB | 18mm | E | 11.5mm |
| EA | M5 | EB | 10.5mm |
| EC | 14mm | ED | 4mm |
| FA | 25mm | FB | 24mm |
| FC | 78.0mm | FD | 82.0mm |
| G | Rc1/4 | GA | 27mm |
| GB | 37.5mm | VC | 130mm |
| VD | 154mm | VE | Φ10H7 |
| VF | 15mm | VG | M10 |
| VH | 24mm | WG | 25mm |
| WK | 174mm | WL | 348mm |
| WY | 307mm | GC | 8.5mm |
| H | M12x1.25 | HA | 9mm |
| HB | 10mm | J | 16mm |
| K | 133mm | L | 266mm |
| N | 234mm | QA | 70mm |
| QB | 8.0mm | QC | 17mm |
| QD | M5 | QE | 12mm |
| RT | 4.5mm | SG | 66.0mm |
| VA | 110mm | VB | 150mm |
| RG | 12mm | RH | -mm |
| RJ | 60mm | RK | 266mm |
| XA | -mm | XB | -mm |
| XC | -mm | RA | 100mm |
| RB | 40mm | RD | Φ12mm |
| RE | Φ20mm | RF | 1.0mm |
| XD | -mm | XE | -mm |
| XF | -mm | XG | -mm |
| XLC | 3010 | CAB | 41 |
