Product Model

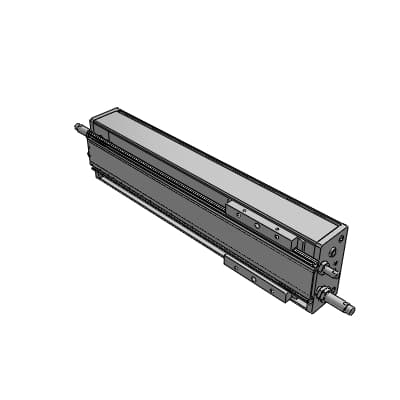

NSR-1-15-300
Key Features
- No key features available for this product.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| X-axis head number | 1: 1 pc. | Payload (kg) | 15kg |
| X-axis stroke (1 mm pitch) | 300mm | Position | 0mm |
| Pitch between heads (1 mm pitch) | 0mm | Adjustable stroke block | Blank: None |
| Port position, speed controller, mounting bracket | Blank: Port position L | Cableveyor | Blank: None |
| Switch | Blank: 2-wire proximity T2H3 (with 2 pcs.) | Product information | Product information |
| SA (T-slot 1) | 7.0mm | SB (T-slot 1) | 11.0mm |
| SC (T-slot 1) | 5mm | SD (T-slot 1) | 6.0mm |
| SE (T-slot 1) | 1.0mm | NH (T-slot 1) | 10mm |
| NM (T-slot 1) | M6 | NT (T-slot 1) | 5.0mm |
| SA (T-slot 2) | 5.0mm | SB (T-slot 2) | 8.5mm |
| SC (T-slot 2) | 4.0mm | SD (T-slot 2) | 4.0mm |
| SE (T-slot 2) | 1.0mm | NH (T-slot 2) | 8mm |
| NM (T-slot 2) | M4 | NT (T-slot 2) | 3.2mm |
| A | 125mm | C | 75mm |
| D | 75mm | DA | M6 |
| DB | 11mm | E | 8.0mm |
| EA | M4 | EB | 8.0mm |
| EC | -mm | ED | 2mm |
| FA | 22mm | FB | 22mm |
| FC | 54.0mm | FD | 54.0mm |
| G | Rc1/8 | GA | 16mm |
| GB | 28.0mm | VC | 100mm |
| VD | 114mm | VE | Φ8H7 |
| VF | 12mm | VG | M6 |
| VH | 12mm | WG | 20mm |
| WK | 137mm | WL | 274mm |
| WY | 235mm | GC | 16.0mm |
| H | M10x1.25 | HA | 7mm |
| HB | 8mm | J | 9mm |
| K | 98mm | L | 196mm |
| N | 178mm | QA | 60mm |
| QB | 6.5mm | QC | 13mm |
| QD | M4 | QE | 10mm |
| RT | 4.5mm | SG | 56.0mm |
| VA | 70mm | VB | 120mm |
| RG | 20mm | RH | 7.5mm |
| RJ | 20mm | RK | 196mm |
| XA | -mm | XB | -mm |
| XC | -mm | RA | 75mm |
| RB | 9mm | RD | Φ7mm |
| RE | Φ12mm | RF | 6.5mm |
| XD | -mm | XE | -mm |
| XF | -mm | XG | -mm |
| XLC | 1505 | CAB | 39 |
Specifications may be subject to change without notice
