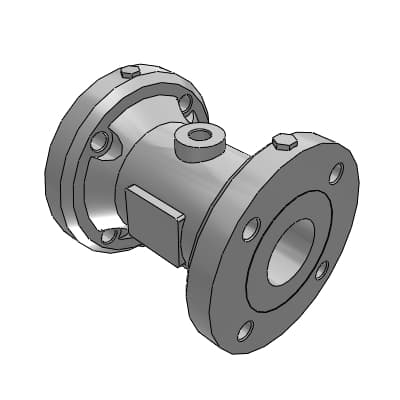

Product Model
NPV2-65A-N
Key Features
- 1Reliable Operation: The NPV2-65A-N operates reliably with a completely closed structure free from external leakage.
- 2Versatile Fluid Control: It can control fluids containing solids such as powder and sludge.
- 3Diverse Lineup: Supports a wide variety of port sizes from 25A to 100A.
- 4Chloroprene Rubber Sleeve: Features a chloroprene rubber sleeve for durability and resistance to foreign matter.
- 5Compressed Air Control: Performs opening and closing operations by compressed air for efficient fluid management.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model | NPV2 | Port size | 65A |
| Rubber sleeve material | N:Chloroprene rubber | A | 65mm |
| B | 109mm | C | 175mm |
| D | 186.5mm | E | 185mm |
| F | 22mm | G | 140mm |
| H | 4mm | J | 63mm |
| K | 94mm |
Specifications may be subject to change without notice
