Product Model

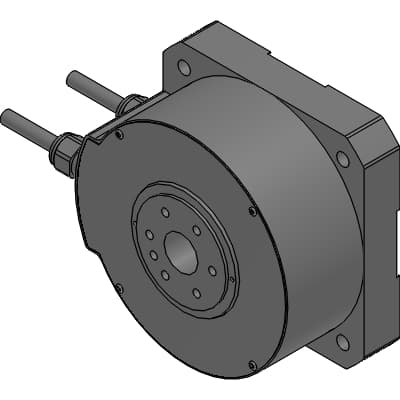

NMR-SAEJA2A-131AN
Key Features
- 1High-speed rotation up to 11 rps for rapid operation.
- 2Absolute position detection with 2,097,152 pulses per revolution.
- 3Compact design with reduced volume ratio by 25% compared to previous models.
- 4High torque density and improved heat-resistant mechanism for stable operation.
- 5Customizable features for special specifications, including air bearings and ball bearings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Motor type | ND110-65-FSN | Model no. | NMR-SAEJA2A-131AN |
| Flange type | Flange type | Table surface rotation accuracy | Without : positioning hole accuracy (Standard)μm |
| Motor construction | N : Nickel plating stator specifications with Absolute positioning accuracy function. | Power source | 200ACV |
| Outside diameter | 112mm | Height | 66mm |
| Rated torque | 4.2N*m | Max torque | 10.5N*m |
| Magnetic pole detection method | Absolute position detection | Rated rotation speed | 5rps |
| Rated output | 131W | Rated current | 2A |
| Encoder type | Absolute | Detection pulse | 2097152ppr |
| Electrical detection resolution | 0.618arcsec | Allowable moment load | 6.1N*m |
| Allowable axial load | 1.1kN | Rotor moment of inertia | 0.00039kg*m^2 |
| Mass | 2.2kg |
Specifications may be subject to change without notice
