Product Model

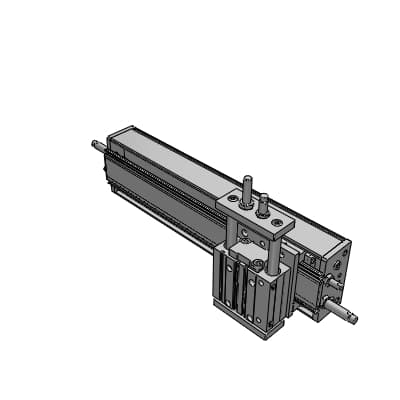

NHS-1-5012-300-S50
Key Features
- 1Designed with advanced engineering for precise control and reliability.
- 2Suitable for a wide range of industrial applications including fluid control and air pressure technology.
- 3Incorporates air pressure technology to promote energy-savings and environmental protection.
- 4Constructed with durable materials ensuring long-lasting performance.
- 5Offers customizable options to meet specific industrial needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| X-axis head number | 1: 1 pc. | Payload (kg) | 5012kg |
| Payload (X-axis) | 50kg | Payload (Z-axis) | 12kg |
| X-axis stroke (1 mm pitch) | 300mm | Z-axis | S : STL-BP-32 |
| Z-axis stroke | 50mm | Pitch between heads (1 mm pitch) | 0mm |
| Adjustable stroke block | Blank: None | Port position, speed controller, mounting bracket | Blank: X-axis port position L |
| Cableveyor | Blank: None | Switch | Blank: 2-wire proximity switch, X-axis...T2H3, Z-axis...T2H3 |
| Z-axis position locking | Blank: None | X-axis position | 0mm |
| Z-axis position | 0mm | Product information | Product information |
| A | 200mm | B | 15mm |
| C | 120mm | D | 130mm |
| DA | M12 | DB | 21mm |
| E | 11.5mm | EA | M6 |
| EB | 13.0mm | EC | 16mm |
| ED | 4mm | FA | 30mm |
| FB | 30mm | FC | 88.5mm |
| FD | 88.5mm | SG | 101.5mm |
| TB | 13mm | G | Rc1/2 |
| GA | 35mm | GB | 46.5mm |
| GC | 5.5mm | H | M12x1.25 |
| HA | 9mm | HB | 10mm |
| J | 16mm | K | 143mm |
| L | 286mm | N | 254mm |
| P | 177mm | QA | 70mm |
| QB | 9.5mm | QC | 20mm |
| QD | M6 | QE | 14mm |
| UA | 54mm | UB | 32mm |
| UL | 129.5mm | ZA | 47mm |
| ZB | 45mm | ZC | 111mm |
| ZD | 109mm | ZE | 45.5mm |
| ZF | 30.5mm | ZG | 23.5mm |
| ZJ | 29mm | ZL | 104.5mm |
| ZU | 93mm | ZW | M8 |
| ZX | through | ZZ | Rc1/8 |
Specifications may be subject to change without notice
