Product Model

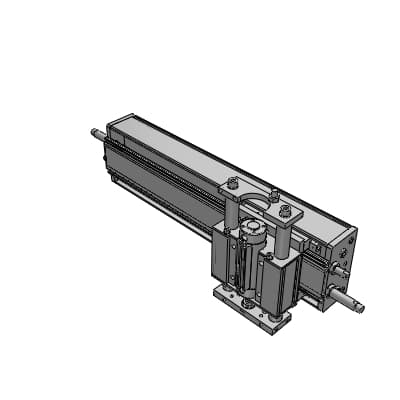

NHS-1-3020-300-H50
Key Features
- 1High-Precision Fluid Control: The NHS-1-3020-300-H50 ensures precise control of fluids, ideal for semiconductor and liquid crystal manufacturing.
- 2Advanced Pneumatic Components: Equipped with cutting-edge pneumatic technology, this product offers superior performance and reliability.
- 3Wide Industrial Applications: Suitable for a broad range of industries including electronics, pharmaceuticals, and food processing.
- 4Enhanced Environmental Protection: Designed to promote environmental protection through efficient energy-saving mechanisms.
- 5Customizable Solutions: Tailored to meet specific customer needs, ensuring optimal performance and efficiency in various production settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Head number | 1: 1 pc. | Payload (kg) | 3020kg |
| X-axis stroke (1 mm pitch) | 300mm | Z-axis | H : HRL-25 |
| Z-axis stroke | 50mm | Pitch between heads (1 mm pitch) | 0mm |
| Adjustable stroke block | Blank: None | Port position and speed controller | Blank: X-axis port position L |
| Cableveyor | Blank: None | Switch | Blank: 2-wire proximity switch, X-axis...T2H3, Z-axis...T2H3 |
| Z-axis position locking | Blank: None | X-axis position | 0mm |
| Z-axis position | 0mm | Product information | Product information |
| A | 165mm | B | 15mm |
| C | 105mm | D | 110mm |
| DA | M10 | DB | 18mm |
| E | 11.5mm | EA | M5 |
| EB | 10.5mm | EC | 14mm |
| ED | 4mm | FA | 25mm |
| FB | 24mm | FC | 78mm |
| FD | 82mm | SG | 66mm |
| G | Rc1/4 | GA | 27mm |
| GB | 37.5mm | GC | 8.5mm |
| H | M12x1.25 | HA | 9mm |
| HB | 10mm | J | 16mm |
| K | 133mm | L | 266mm |
| N | 234mm | P | 150mm |
| QA | 70mm | QB | 8.0mm |
| QC | 17mm | QD | M5 |
| QE | 12mm | RV | 53.2mm |
| RW | 266mm | RK | 115.2mm |
| RY | 335mm | TB | 45mm |
| ZA | 80mm | ZB | 16mm |
| ZC | 30mm | ZD | 200mm |
| ZE | -mm | ZF | 45mm |
| ZG | 8mm | ZJ | 45mm |
| ZK | M4mm | ZL | 252mm |
| ZM | M8mm | ZN | 10mm |
| ZQ | -mm | ZR | 75mm |
| ZS | -mm | ZT | -mm |
| ZU | 100mm | ZV | 15.0mm |
| ZW | M8 | ZX | 150mm |
| ZY | 55mm | ZZ | Rc1/8 |
| XH | 75mm | XK | 29mm |
| XM | 19mm | XN | 62mm |
| XP | 50mm | XY | 300mm |
Specifications may be subject to change without notice
