Product Model

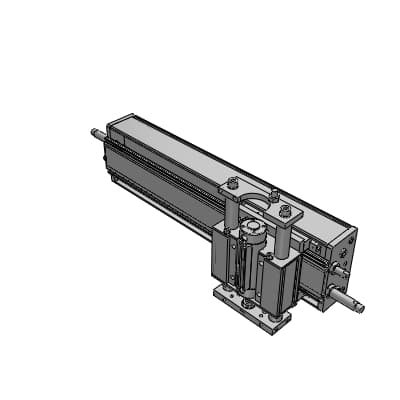

NHS-1-1005-300-H50
Key Features
- No key features available for this product.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Head number | 1: 1 pc. | Payload (kg) | 1005kg |
| X-axis stroke (1 mm pitch) | 300mm | Z-axis | H : HRL-05 |
| Z-axis stroke | 50mm | Pitch between heads (1 mm pitch) | 0mm |
| Adjustable stroke block | Blank: None | Port position and speed controller | Blank: X-axis port position L |
| Cableveyor | Blank: None | Switch | Blank: 2-wire proximity switch, X-axis...T2H3, Z-axis...T2H3 |
| Z-axis position locking | Blank: None | X-axis position | 0mm |
| Z-axis position | 0mm | Product information | Product information |
| A | 125mm | B | 10mm |
| C | 75mm | D | 75mm |
| DA | M6 | DB | 11mm |
| E | 8.0mm | EA | M4 |
| EB | 8.0mm | EC | -mm |
| ED | 2mm | FA | 22mm |
| FB | 22mm | FC | 54mm |
| FD | 54mm | SG | 30mm |
| G | Rc1/8 | GA | 16mm |
| GB | 28mm | GC | 16mm |
| H | M10x1.25 | HA | 7mm |
| HB | 8mm | J | 9mm |
| K | 98mm | L | 196mm |
| N | 178mm | P | 120mm |
| QA | 60mm | QB | 6.5mm |
| QC | 13mm | QD | M4 |
| QE | 10mm | RV | 54.2mm |
| RW | 196mm | RK | 79.7mm |
| RY | 215mm | TB | 25mm |
| ZA | 45mm | ZB | 12mm |
| ZC | 30mm | ZD | 100mm |
| ZE | 65mm | ZF | 25mm |
| ZG | 6mm | ZJ | 25mm |
| ZK | M4mm | ZL | 154mm |
| ZM | M5mm | ZN | 10mm |
| ZQ | 6mm | ZR | 44mm |
| ZS | M5mm | ZT | 10mm |
| ZU | 50mm | ZV | 9.5mm |
| ZW | M5 | ZX | 80mm |
| ZY | 23mm | ZZ | Rc1/8 |
| XH | 64mm | XK | 20.5mm |
| XM | 14mm | XN | 49mm |
| XP | 40mm | XY | 150mm |
Specifications may be subject to change without notice
