Product Model

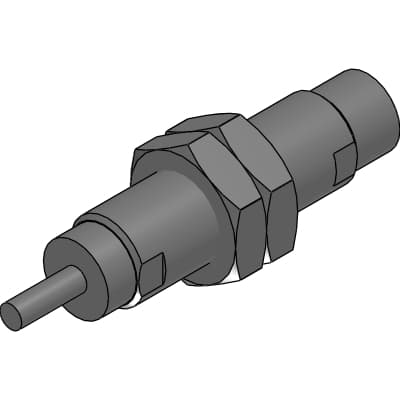

NCK-00-0.7
Key Features
- 1High absorbing performance up to 7 J of energy.
- 2Linear soft stop ensures smooth impact absorption.
- 3Compact and slim design for efficient space usage.
- 4Ideal for medium to slow speed operations.
- 5Advanced slit orifice method for superior performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | NCK | Mounting | 00: Basic |
| Series (max. energy absorption) | 0.7: 7J | Option | Blank: Standard |
| Product information | Product information | A | 50.0mm |
| AA | 57.0mm | B | 7.5mm |
| C | 41.5mm | E | 7.0mm |
| F | 4.0mm | G | 9.0mm |
| H | 9mm | I | 8mm |
| J | M10x1.0 | K | 3.0mm |
| L | 14mm | LL | 16.2mm |
| M | 13mm | MM | 20.0mm |
| N | 31.0mm | P | 42mm |
| Q | 30mm | R | 20mm |
| S | 5.5mm | T | 2.3mm |
| U | 17.0mm | V | 10mm |
| W | 15mm | X | 11mm |
| Y | 13mm |
Specifications may be subject to change without notice
