Product Model

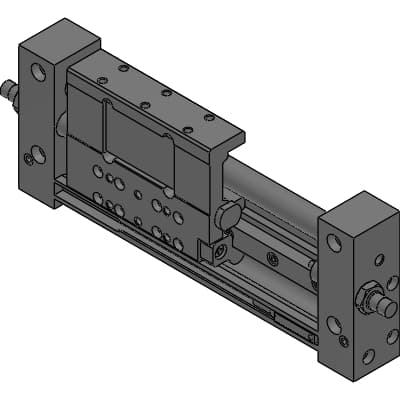

MRG2-16-50-T0H-R
Key Features
- 1High precision guide for reliable operation.
- 2Double acting design for versatile applications.
- 3Compatible with programmable controllers and relay IC circuits.
- 4Easy integration with proximity switches (T0H).
- 5Robust construction with stainless steel tube for high corrosion resistance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | MRG2 | Bore size | 16 |
| Stroke | 50 | Switch model No. | T0: Reed, 1-color LED, 2-wire |
| Lead wire direction | H: Straight | Lead wire length | Blank: 1 m (standard) |
| Switch quantity | R: 1 on R side | Option | Blank: None |
| Stroke position | 0mm | LA | 166mm |
| B | 32mm | G | 34mm |
| F | 80mm | H | 88mm |
| O | 11mm | LB | 144mm |
| LD | 48mm | LJ | 24mm |
| LE | 4.5mm | LF | 8 spot face depth 4.4mm |
| LG | M5 depth 8mm | LH | M5 depth 8mm |
| A | 23mm | C | 4.5mm |
| PA | 22mm | PB | 32mm |
| RA | 14mm | RB | 16mm |
| Q | M4 depth 6mm | TA | 21.5mm |
| TB | 16mm | TC | 30mm |
| TD | 24mm | UA | M4 depth 6mm |
| D | T0H | LX | 18mm |
| EE | M5 depth 4mm | LY | 19.0mm |
| EF | M5 depth 4mm | LZ | 15.0mm |
| E | 46.5mm | I | 24mm |
| J | 72mm | K | 16.5mm |
| L | 20mm | M | 9mm |
| N | 108mm | LC | 9mm |
| V | MRG2-16-Cmm | RD | 0.0mm |
| LD2 | 0.0mm | X | - |
| Y | - | Y2 | -mm |
| J2 | -mm | Product information | Product information |
