Product Model

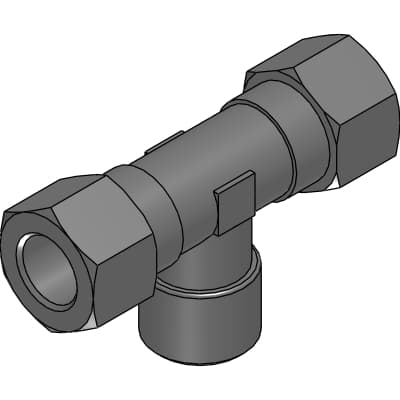

MJT12-10-M
Key Features
- 1Up to 1.0 MPa (≈150 psi) for reliable performance in compressed air systems.
- 2Operates between -10°C to 60°C (14°F to 140°F), ensuring stability in various environments.
- 3Constructed from copper alloy for strength and corrosion resistance.
- 4Compatible with soft nylon tubes, urethane tubes, and coiling tubes for flexible installation options.
- 5Designed with precise dimensions for smooth operation and minimal leakage.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | MJT12-10-M | Compatible tube O.D. | 12 |
| Port size | Rc3/8 | H | 19mm |
| L1 | 27.0mm | L2 | 29.0mm |
| A | 12mm | B | 16.0mm |
| Min. bore | 10.0 | Eff. X-sectional area | 63.8mm^2 |
| Weight | 120g |
Specifications may be subject to change without notice
