Product Model

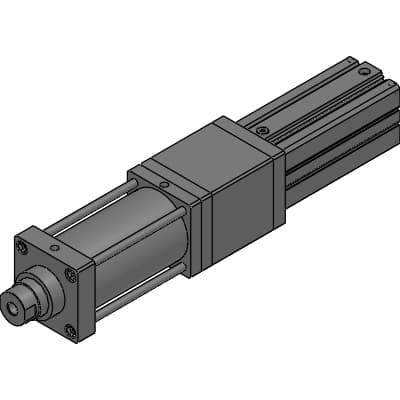

MCP-S-00-2-10
Key Features
- 1High thrust output of 2t with compact design.
- 2Compatible with compressed air for efficient operation.
- 3Robust construction for reliable performance in demanding environments.
- 4Easy integration with pneumatic control systems.
- 5Durable and environment-friendly operation with minimal oil usage.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | MCP-S: Booster section only | Mounting | 00: Basic |
| Actual thrust | 2: For 2t | Total stroke | 10mm |
| Option | Blank: Rod end female thread | Piston rod position | 0mm |
| Product information | Product information | A | 416.5mm |
| B | 379.5mm | C | 223.5mm |
| CA | -mm | CB | -mm |
| D | 17.0mm | E | Rc3/8 |
| EA | - | F | 37mm |
| FI | -mm | G | 5mm |
| H | 60mm | I | 32mm |
| IA | -mm | J | 90mm |
| K | 118mm | L | M12 depth 20 |
| LA | -mm | LB | -mm |
| MN | 17mm | N | M20 depth 24 |
| O | 31mm | P | 98mm |
| Q | -mm | R | 104mm |
| Y | 27mm | S | 154mm |
| T | 185mm | U | 18mm |
| V | 87mm | W | 118mm |
| GA | -mm | X | 20mm |
| FA | 37mm | FB | 40mm |
| FC | 77mm | NA | M26 X 1.5 |
Specifications may be subject to change without notice
