Product Model

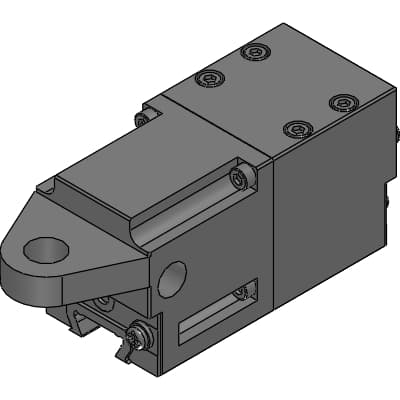

LMB-SR-20
Key Features
- 1The LMB-SR-20 provides holding forces of up to 1960 N, ensuring stable workpiece positioning.
- 2Enables emergency stops for enhanced safety in critical situations.
- 3Equipped with a dust-proof scraper as standard, ensuring reliable operation in various environments.
- 4The lock mechanism is released by air supply, allowing for manual operation if needed.
- 5Compact design with no backlash when locked, making it ideal for precision applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | LMB | Operating rail size | 20:SR-20/SSR-20 |
| A | 110mm | B | 27mm |
| C | 83mm | D | 12.0mm |
| E | 7mm | F | 12mm |
| G | 9.5mm | H | 10mm |
| I | 13mm | J | 22.5mm |
| K | 60.5mm | L | 61.0mm |
| M | 7.5mm | N | 53.0mm |
| O | 22.5mm | P | 45mm |
| Q | 16.5mm | Product information | Product information |
Specifications may be subject to change without notice
