Product Model

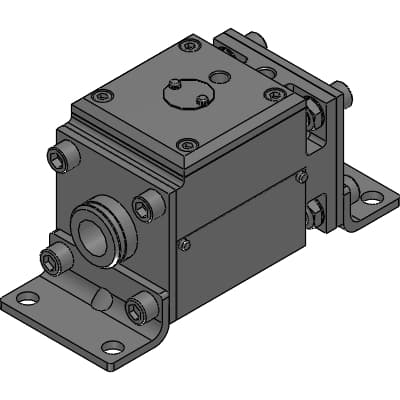

JSB3-LB-25
Key Features
- No key features available for this product.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | JSB3 | Mounting | LB: Axial foot |
| Rod diameter | 25: ø25mm | Rod length | Blank: Not includedmm |
| Product information | Product information | A | 186.5mm |
| B | 17.5mm | BF | -mm |
| C | 151.5 | CF | -mm |
| D | 13mm | DF | -mm |
| E | 119mm | EF | -mm |
| F | 66mm | FF | -mm |
| G | 27mm | H | M14 |
| I | Rc1/4 | J | 43.0mm |
| K | 25mm | LL | 74mm |
| LF | -mm | ML | 98mm |
| NL | 60mm | N | -mm |
| O | 66.0mm | PL | 126mm |
| P | -mm | Q | 5mm |
| RL | 14mm | RF | -mm |
| SL | 225.5mm | SF | -mm |
| TL | 253.5mm | TF | -mm |
| UL | 14mm | UF | -mm |
| VL | 6mm | M | 98mm |
| MA | 107mm |
Specifications may be subject to change without notice
