Product Model

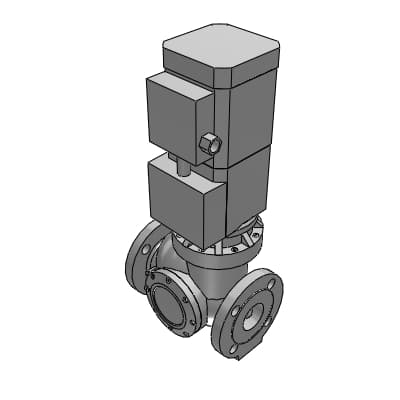

HS-50J-AC100V
Key Features
- 1Multifunctional Systematization: Combines double cutoff function, governor function, and pressure detection port for precise control.
- 2Easy Port Size Change: Port size can be easily changed by replacing the flange from 25A to 50A.
- 3High Flow Rate: Supports flow rates up to 1000 m³/h with specific gravity 0.65.
- 4Hydrogen Compatible: Compatible with hydrogen gas as a working fluid, making it suitable for various industrial applications.
- 5Versatile Voltage Options: Operates on both 100 VAC and 200 VAC, providing flexibility in power supply configurations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | HS | Port size | 50J : JIS Flange 50A |
| Terminal Box | Blank : None | Micro switch | Blank : Without micro switch |
| Outdoor | Blank : Standard | Options | Blank : None |
| Voltage | AC100V : 100VAC 50/60 HZ | H1 | 434mm |
| H2 | 82mm | L1 | 230mm |
| L2 | 83mm | C | 20mm |
| φC | 155mm | φK | 120mm |
| N-φd | 4-19mm |
Specifications may be subject to change without notice
