Product Model

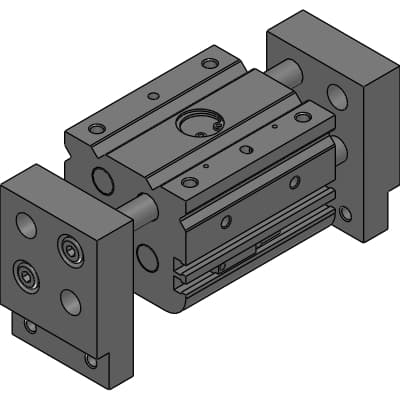

HMF-25CS-T2H-R
Key Features
- 1Compact Design: Low overall height for effective space utilization.
- 2Powerful Gripping Force: Double piston mechanism ensures strong clamping.
- 3Long Stroke Length: Operating stroke length up to 200 mm without adjustments.
- 4Coolant Resistant: Built-in scraper type for improved durability in coolant environments.
- 5Precision Control: ±0.1 mm repeatability for precise operations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Type | HMF | Size | 25CS |
| Option | Blank: None | Switch model no. | T2, Proximity, 1 color light, 2 wire |
| Lead wire direction | H: Axial | Lead wire length | Blanck: 1 m lead wire |
| Switch quantity | R: One on open side | Lenght (Min-Max) | 141mm |
| C | 70mm | D | 48mm |
| E | 70.0mm | F | 91mm |
| G | 41mm | H | 22mm |
| I | 25.0mm | J | 0.0mm |
| K | 0.0mm | L | 0mm |
Specifications may be subject to change without notice
