Product Model

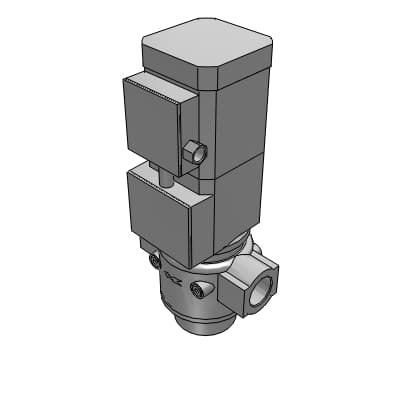

HK1-40-AC100V
Key Features
- 1Highly Reliable Performance: The HK1-40-AC100V features a reliable cutoff valve with an integrated motor/hydraulic pump for safe gas cutoff.
- 2Adjustable Flow Rates: Easily adjust the flow rate from 0 to 100% without a flow rate controller, ensuring precise control over gas flow.
- 3Wide Temperature Range: Operates in ambient temperatures from -15°C to +60°C, making it suitable for various industrial environments.
- 4Integrated Strainer: Built-in strainer prevents foreign matter from being caught in pipes, ensuring continuous operation.
- 5Hydrogen Gas Compatible: Compatible with hydrogen gas, featuring a hydrogen nameplate for easy identification of hydrogen gas lines.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | HK | Model | 1 : ON-OFF 2-position control |
| Port size | 40 : Screw-in Rp1 1/2 | Terminal box | Blank : None |
| Micro switch | Blank : Without micro switch | Outdoor | Blank : Standard |
| Options | Blank : None | Voltage | AC100V : 100 VAC 50/60 Hz |
| H1 | 324mm | H2 | 114mm |
| L1 | 210mm | L2 | 70mm |
| C | -mm | φD | -mm |
| φK | -mm | N-φd | -mm |
| Weight | 9.0kg |
Specifications may be subject to change without notice
