Product Model

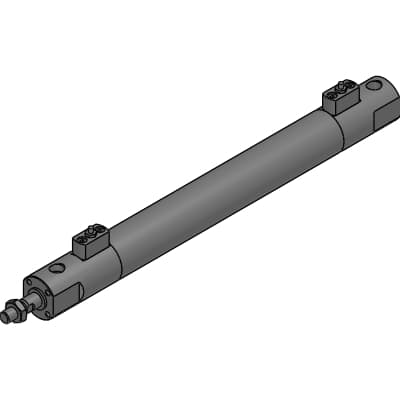

HCM-00-40B-200
Key Features
- 1High energy absorption capability with air cushion for efficient operation.
- 2Double acting design for precise control and versatility.
- 3Compatible with compressed air, operating within 0.15 to 1.0 MPa pressure range.
- 4Robust construction suitable for ambient temperatures from -10°C to 60°C.
- 5Customizable stroke lengths available in 1 mm increments for tailored applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | HCM | Bore size | 40mm |
| Mounting | 00: Basic | Port thread | Blank: Rc thread |
| Cushion | B: With two-sided cushion | Standard stroke - custom stroke input | 200mm |
| Optional piston rod material | None | Accessory | None |
| Piston rod position | 0 | Product information | Product information |
| A | 26mm | B | 22mm |
| C | 24mm | D | 46mm |
| DA | M6 depth 10 | E | 46mm |
| EA | 62mm | EB | 51mm |
| EC | 47.3mm | EE | Rc 1/4 |
| F | 29 | FA | -mm |
| FD | -mm | FJ | -mm |
| FF | -mm | FG | -mm |
| FL | -mm | FM | -mm |
| FT | -mm | G | 14mm |
| J | 25mm | KK | M14X1.5 |
| LA | -mm | LB | -mm |
| LC | -mm | LD | -mm |
| LE | -mm | LF | -mm |
| LH | -mm | LL | 186 |
| LR | -mm | LS | -mm |
| LT | -mm | LX | -mm |
| MC | 41mm | M | -mm |
| MM | 16mm | MN | 14mm |
| MO | 7mm | N | 2 |
| QA | 26mm | QB | 14mm |
| SD | 26mm | T | 8mm |
| W | -mm | WF | 20.5mm |
| X | 234.5mm | XF | 46.5mm |
| Y | 28mm | GR | 77mm |
| GH | 66mm | GA | 18mm |
| GB | 25.7mm | P | 29.5mm |
Specifications may be subject to change without notice
