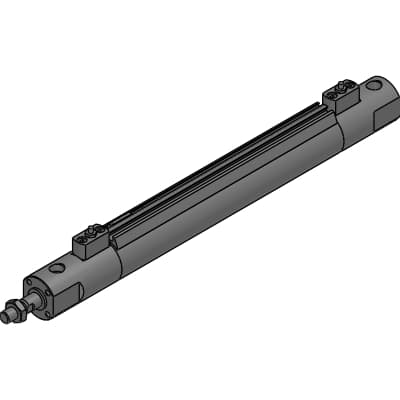

Product Model
HCM-00-20B-200-T0H-R
Key Features
- 1High energy absorption capability with air cushion.
- 2Double-acting single rod type for versatile applications.
- 3Available in bore sizes from ø20 to ø63 mm.
- 4Customizable stroke length in 1 mm increments.
- 5Compatible with compressed air up to 1.0 MPa working pressure.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | HCM | Bore size | 20mm |
| Mounting | 00: Basic | Port thread | Blank: Rc thread |
| Cushion | B: With two-sided cushion | Standard stroke - custom stroke input | 200mm |
| Switch model No. | T0: Reed, 1-color LED, 2-wire | Lead wire direction | H: Straight |
| Lead wire | Blank: None | Lead wire length | Blank: 1 m (standard) |
| Switch option | Blank: None | Switch quantity | R: 1 on rod side |
| Optional switch rail | None | Optional piston rod material | None |
| Accessory | None | Piston rod position | 0 |
| Product information | Product information | A | 18mm |
| B | 13mm | C | 16mm |
| D | 26mm | DA | M4 depth 8 |
| E | 28mm | EA | 52mm |
| EB | 43mm | EC | 32.7mm |
| EE | Rc 1/8 | F | 29 |
| FA | -mm | FD | -mm |
| FJ | -mm | FF | -mm |
| FG | -mm | FL | -mm |
| FM | -mm | FT | -mm |
| G | 14mm | J | 13mm |
| KK | M8 | LA | -mm |
| LB | -mm | LC | -mm |
| LD | -mm | LE | -mm |
| LF | -mm | LH | -mm |
| LL | 164 | LR | -mm |
| LS | -mm | LT | -mm |
| LX | -mm | MC | 24mm |
| M | -mm | MM | 10mm |
| MN | 8mm | MO | 5mm |
| N | 2 | QA | 18mm |
| QB | 10mm | SD | 14mm |
| T | 5mm | W | -mm |
| WF | 15.5mm | X | 199.5mm |
| XF | 33.5mm | Y | 20mm |
| GR | 67mm | GH | 58mm |
| GA | 18mm | GB | 23mm |
| P | 19.5mm | RD | 9.5mm |
| HD | 9mm |
Specifications may be subject to change without notice
