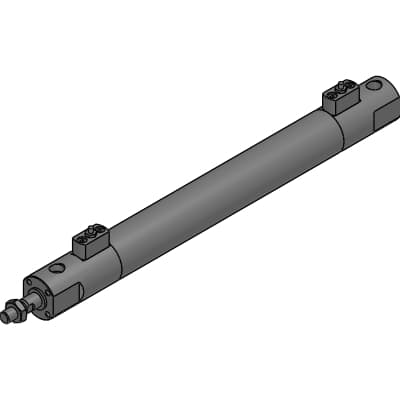

Product Model
HCM-00-20B-200
Key Features
- 1Achieve speeds of up to 2000 mm/s for efficient mold ejection.
- 2Five times higher impact absorption than conventional cylinders, ensuring smooth operation.
- 3Meets a wide range of conditions with adjustable stroke lengths from 200 to 700 mm.
- 4Realizes smooth stop at the stroke end with a built-in new cushion mechanism.
- 5Ideal for medium speed range applications, especially with heavy loads, in industries like jig-related manufacturing.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | HCM | Bore size | 20mm |
| Mounting | 00: Basic | Port thread | Blank: Rc thread |
| Cushion | B: With two-sided cushion | Standard stroke - custom stroke input | 200mm |
| Optional piston rod material | None | Accessory | None |
| Piston rod position | 0 | Product information | Product information |
| A | 18mm | B | 13mm |
| C | 16mm | D | 26mm |
| DA | M4 depth 8 | E | 28mm |
| EA | 52mm | EB | 43mm |
| EC | 32.7mm | EE | Rc 1/8 |
| F | 29 | FA | -mm |
| FD | -mm | FJ | -mm |
| FF | -mm | FG | -mm |
| FL | -mm | FM | -mm |
| FT | -mm | G | 14mm |
| J | 13mm | KK | M8 |
| LA | -mm | LB | -mm |
| LC | -mm | LD | -mm |
| LE | -mm | LF | -mm |
| LH | -mm | LL | 164 |
| LR | -mm | LS | -mm |
| LT | -mm | LX | -mm |
| MC | 24mm | M | -mm |
| MM | 10mm | MN | 8mm |
| MO | 5mm | N | 2 |
| QA | 18mm | QB | 10mm |
| SD | 14mm | T | 5mm |
| W | -mm | WF | 15.5mm |
| X | 199.5mm | XF | 33.5mm |
| Y | 20mm | GR | 67mm |
| GH | 58mm | GA | 18mm |
| GB | 23mm | P | 19.5mm |
Specifications may be subject to change without notice
