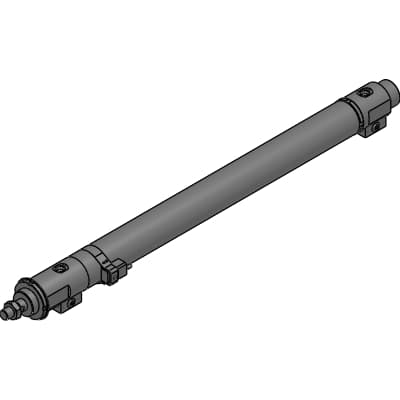

Product Model
HCA-00-40B-400-R1-R
Key Features
- 1High speed performance for demanding applications.
- 2Double acting/single rod type for versatile operation.
- 3Customizable stroke lengths from 400 to 1000 mm.
- 4Compatible with various mounting styles and accessories.
- 5Robust construction with cast iron material for durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | HCA | Mounting | 00: Basic |
| Bore size | 40mm | Port thread | Blank: Rc thread |
| Cushion | B: With two-sided cushion | Standard stroke - custom stroke | 400mm |
| Switch model No. | R1: Proximity, 1-color LED, 2-wire | Lead wire length | Blank: 1 m (standard) |
| Switch quantity | R: 1 on rod side | Accessory | Blank: None |
| Rod position | 0mm | Product information | Product information |
| A | 22mm | B | 22mm |
| C | 20mm | D | 46.0mm |
| E | 73mm | EE | Rc 1/4 |
| F | 45.5mm | G | 57mm |
| J | 46.0mm | KK | M14 x 1.5 |
| L | 8mm | LL | 203mm |
| LL + stroke | 603mm | MB | M35 x 1.5 |
| MM | 16mm | MN | 6mm |
| MO | 14mm | O | 57mm |
| Q | 25.0mm | R | 54mm |
| S | 28.5mm | T | 22.0mm |
| U | 38mm | V | 20mm |
| WF | 32mm | X | 277mm |
| X + stroke | 677mm | XE | 223mm |
| XE + stroke | 623mm | Y | 45.5mm |
| YA | 25.0mm | Z | 21.0mm |
| LA | 289mm | LA + stroke | 689mm |
| LB | 10mm | LC | 22mm |
| LD | 10mm | LE | 247mm |
| LE + stroke | 647mm | LF | 40mm |
| LG | 3.2mm | LH | 40mm |
| LK | 9.0mm | LM | 24.0mm |
| LS | 58mm | FA | 9.0mm |
| FB | 23.0mm | FC | 232.0mm |
| FC + stroke | 632.0mm | FD | 100mm |
| FE | 80mm | FG | 58mm |
| FH | 40mm | FI | 244.0mm |
| FJ | 9.0mm | HD | 22.0mm |
| P | 39mm | P1 | 59mm |
| RD | 21.0mm |
Specifications may be subject to change without notice
