Product Model

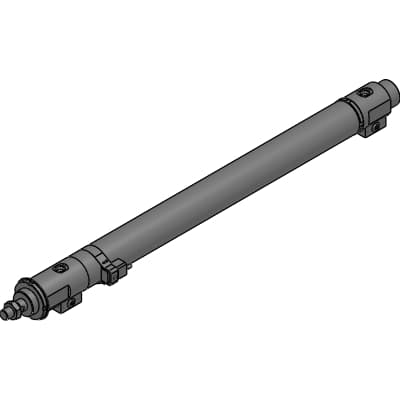

HCA-00-20B-400-R1-R
Key Features
- 1High speed operation with double acting/single rod design.
- 2Standard mounting style for easy installation.
- 3Both sides cushioning for enhanced durability and performance.
- 4Operating temperature range from -10°C to 60°C.
- 5Compatible with compressed air and suitable for high-frequency applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | HCA | Mounting | 00: Basic |
| Bore size | 20mm | Port thread | Blank: Rc thread |
| Cushion | B: With two-sided cushion | Standard stroke - custom stroke | 400mm |
| Switch model No. | R1: Proximity, 1-color LED, 2-wire | Lead wire length | Blank: 1 m (standard) |
| Switch quantity | R: 1 on rod side | Accessory | Blank: None |
| Rod position | 0mm | Product information | Product information |
| A | 20mm | B | 13mm |
| C | 18mm | D | 25.0mm |
| E | 86mm | EE | Rc 1/8 |
| F | 34.0mm | G | 74mm |
| J | 33.0mm | KK | M8 x 1 |
| L | 5mm | LL | 223mm |
| LL + stroke | 623mm | MB | M25 x 1.5 |
| MM | 10mm | MN | 4mm |
| MO | 8mm | O | 42mm |
| Q | 22.0mm | R | 44mm |
| S | 21.5mm | T | 17.0mm |
| U | 29mm | V | 16mm |
| WF | 24mm | X | 283mm |
| X + stroke | 683mm | XE | 239mm |
| XE + stroke | 639mm | Y | 34.0mm |
| YA | 22.0mm | Z | 15.0mm |
| LA | 295mm | LA + stroke | 695mm |
| LB | 8mm | LC | 20mm |
| LD | 4mm | LE | 263mm |
| LE + stroke | 663mm | LF | 30mm |
| LG | 3.2mm | LH | 40mm |
| LK | 6.6mm | LM | 19.0mm |
| LS | 54mm | FA | 4.5mm |
| FB | 19.5mm | FC | 243.5mm |
| FC + stroke | 643.5mm | FD | 66mm |
| FE | 52mm | FG | 38mm |
| FH | 24mm | FI | 251.5mm |
| FJ | 6.6mm | HD | 15.5mm |
| P | 28mm | P1 | 48mm |
| RD | 17.5mm |
Specifications may be subject to change without notice
