Product Model

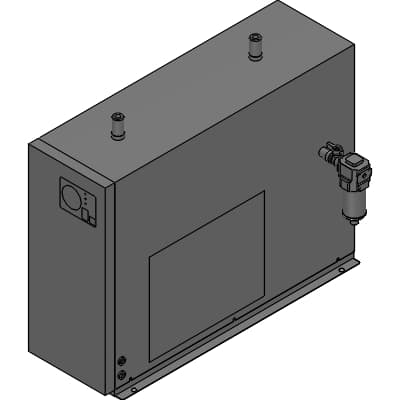

GX5215D-AC200V
Key Features
- 1High efficiency in drying compressed air with a rated air capacity of 2.10 to 2.40 m³/min (ANR).
- 2Easy maintenance design allows for quick checks and service even during operation.
- 3Compatible with air compressors up to 55 kW, making it versatile for various industrial needs.
- 4Utilizes R-407C refrigerant for environmental reliability and safety.
- 5Compact design with top surface exhaust and drain trap installation options for space-saving installations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Molde No. | GX52 | Capacity category | 15D : 15 kW |
| Option 1 | Blank : Standard products | Option 2 | Blank : None |
| Option 3 | Blank : None | Option 4 | Blank : None |
| Option 5 | Blank : None | Option 6 | Blank : None |
| Option 7 | Blank : None | Voltage | 200 VAC |
| Infotext | https://www.ckd.co.jp/kiki/en/product/detail/80/GX3200D%E3%83%BBGX5200D?t=list&cid=75&sid=0 | A | 870mm |
| B | 280mm | C | (370)mm |
| D | 105mm | E | 740mm |
| F | (222)mm | G | -mm |
| H | -mm | I | -mm |
| J | -mm | K | -mm |
| L | -mm | M | -mm |
| N | -mm | O | -mm |
Specifications may be subject to change without notice
