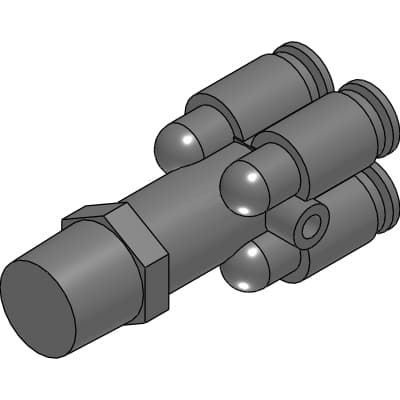

Product Model
GWWY6-8
Key Features
- 1Compact size for space-saving applications.
- 2Flame-resistant PBT resin for safe use in various environments.
- 3Push-to-connect design for quick and secure tube connections.
- 4Compatible with metric tubes and BSPT/metric thread connections.
- 5Easy to install with V-shaped packing seal for smooth insertion and accurate sealing.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | GWWY6-8 | Applicable tube O.D.∅ | 6mm |
| M | R1/4 | H | 17mm |
| L | 54.5mm | A | 11.0mm |
| B | 17.5mm | C | 12.5mm |
| D | 26mm | E | 3.2mm |
| F | 27mm | N | 17.0mm |
| P | 13.5mm | Effective sectional area | 23.0mm^2 |
Specifications may be subject to change without notice
