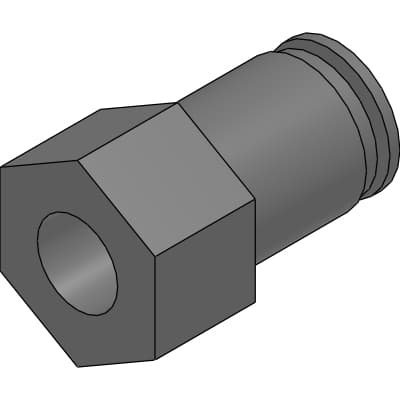

Product Model
GWS10-10-M
Key Features
- 1High-Temperature Resistance: Operates between -10°C to 60°C.
- 2Electroless Nickel Plating: Provides corrosion resistance and durability.
- 3Standard NBR Gasket: Ensures reliable sealing in various fluid applications.
- 4Hammered Nipple Design: Enhances fluid flow and reduces pressure drop.
- 5Compact and Lightweight: Easy to handle and install in tight spaces.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | GWS10-10-M | Applicable tube O.D.∅ | 10mm |
| M | Rc3/8 | H | 19mm |
| L | 35.5mm | L1 | 15mm |
| A | 12mm | B | 21.5mm |
| Min. bore size | 8.0mm | Effective sectional area | 30.5mm^2 |
Specifications may be subject to change without notice
