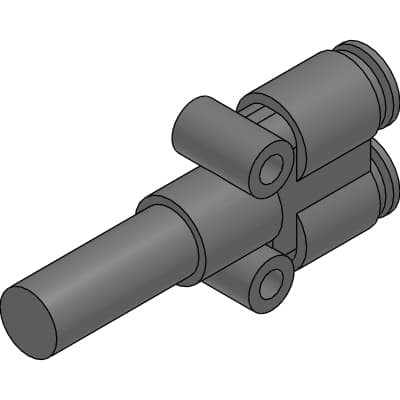

Product Model
GWP1212-Y
Key Features
- 1High-Quality Material: Made from flame-retardant resin (UL94 V-0 equivalent) for safety and durability.
- 2Easy Installation: Y-shaped plug design for smooth tube insertion and secure sealing.
- 3Compact Design: Space-saving compact size ideal for pneumatic piping systems.
- 4Durable Construction: Standard NBR seal ensures long-lasting performance in clean environments.
- 5Versatile Application: Suitable for air fittings, single-action joints, and various pneumatic applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | GWP1212-Y | Applicable tube O.D.∅ | 12mm |
| Joint port size ∅ | 12mm | L | 76.0mm |
| A | 53.0mm | B | 23.0mm |
| D | 41mm | E | 4.2mm |
| F | 21.0mm | J | 32.0mm |
| P | 21.0mm | Min. bore size | 8.8mm |
| Effective sectional area | 36.3mm^2 |
Specifications may be subject to change without notice
