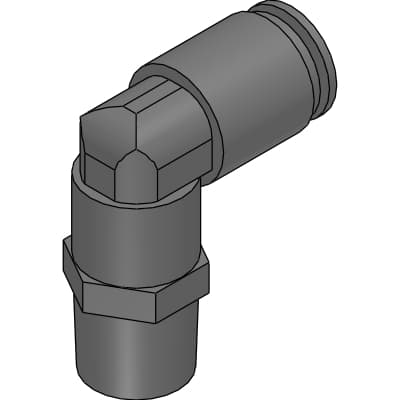

Product Model
GWL16-10
Key Features
- No key features available for this product.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | GWL16-10 | Applicable tube O.D.∅ | 16mm |
| M | R3/8 | H | 22mm |
| L1 | 41.0mm | L2 | 35.5mm |
| A | 12.0mm | B | 28.0mm |
| C | 26.5mm | Min. bore size | 12.0mm |
| Effective sectional area | 80.0mm^2 |
Specifications may be subject to change without notice
