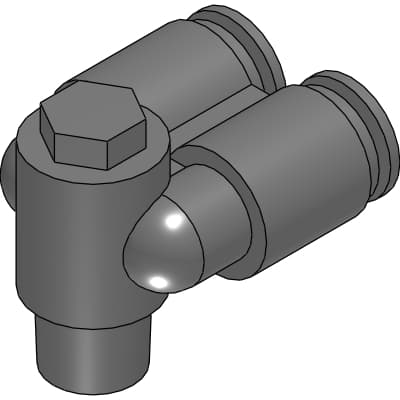

Product Model
GWL12-15-2T
Key Features
- 1Compact design for space-saving applications.
- 2Flame-resistant PBT resin for safe use in various environments.
- 3Easy push-to-connect installation with no need for tools.
- 4Compatible with metric tubes and male BSPT/metric threads.
- 5Ideal for pneumatic systems requiring high reliability and durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | GWL12-15-2T | Applicable tube O.D.∅ | 12mm |
| M | R1/2 | H | 17mm |
| L1 | 35.5mm | L2 | 42.5mm |
| A | 15.0mm | B | 23.0mm |
| C | 20.0mm | D | 4mm |
| O | 41mm | P | 21.0mm |
| Effective sectional area | 34.0mm^2 |
Specifications may be subject to change without notice
