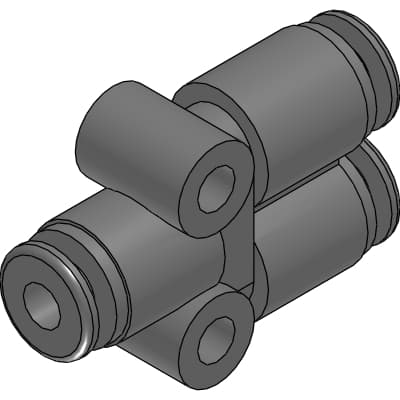

Product Model
GWJY43-0
Key Features
- 1Precision Engineering: Designed with advanced engineering techniques for optimal performance.
- 2Durable Construction: Built with high-quality materials for long-lasting use in industrial settings.
- 3Advanced Fluid Control: Features refined components for precise fluid management.
- 4Versatile Applications: Suitable for a wide range of industrial applications, including pneumatic systems.
- 5Enhanced Reliability: Ensures consistent operation with minimal maintenance required.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | GWJY43-0 | Compatible tube O.D. φ A side | 4.0mm |
| Compatible tube O.D. φ B side | 3.2mm | L | 28.5mm |
| B1 | 13.5mm | B2 | 12.5mm |
| C | 9.6mm | D1 | 12.2mm |
| D2 | 12.0mm | E | 3.2mm |
| F | 17mm | P | 8.5mm |
| G | 18.7mm | Eff. X-sectional area | 2.7mm^2 |
| Weight | 4.9g |
Specifications may be subject to change without notice
