Product Model

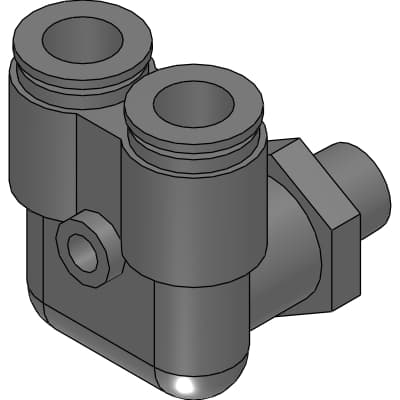

GWFY6-6
Key Features
- No key features available for this product.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | GWFY6-6 | Applicable tube O.D.∅ | 6mm |
| M | R1/8 | H | 14mm |
| L1 | 28.0mm | L2 | 27.0mm |
| A | 8.0mm | B | 17.5mm |
| C | 12.5mm | D | 26mm |
| E | 4.2mm | F | 13.5mm |
| G | 22.5mm | N | 17.0mm |
| P | 13.5mm | Min. bore size | 4.0mm |
| Effective sectional area | 10.5mm^2 |
Specifications may be subject to change without notice
