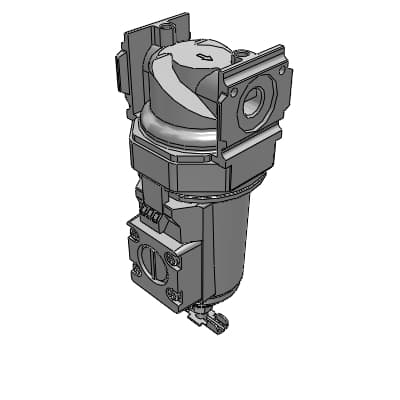

Product Model
FW3000-10-W
Key Features
- 1Compact modular design for space-saving installation.
- 2Unique chemical fiber element with long service lifespan.
- 3Recessed pressure gauge for improved safety and reduced weight by 50%.
- 4General dry air filtration with a 5μm filter level.
- 5Reliable operation up to 1 Mpa max. operating pressure.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | FW3000 | Port size | 10 : 3/8 |
| Port thread type | Blank : Rc thread | Drain discharge | Blank : With manual pet cock |
| Element | Blank : 5μm | Warranty period | Blank : 1 year after delivery |
| Flow direction | Blank : Standard flow (left to right) | Attachment bracket type | Blank : Not attached |
| Infotext | https://www.ckd.co.jp/kiki/en/product/detail/39/FW%E2%80%BB000-W?t=list&cid=68&sid=0 |
Specifications may be subject to change without notice
