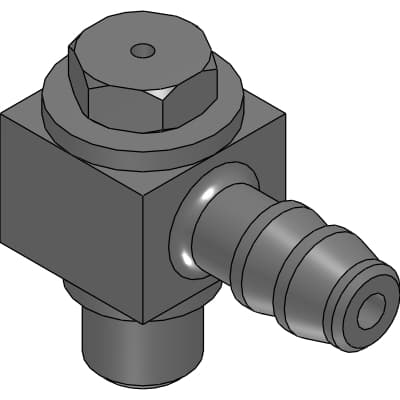

Product Model
FTL4-M3
Key Features
- 1Ultra-small design for precise applications.
- 2Compatible with M3 and M5 piping sizes.
- 3Available in Ø3.2, Ø4, and Ø6 tube diameters.
- 4Made from durable brass material.
- 5Electroless nickel plating for enhanced durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model | FTL4-M3 | Compatible tube OD | φ3.2,φ4 |
| A | 10.5mm | D | 5mm |
| E | M3x0.5 | Min. bore size | 1.0 |
| H | 2.9mm | J | 2.9mm |
| K | 6.8mm | L | 2.6mm |
Specifications may be subject to change without notice
