Product Model

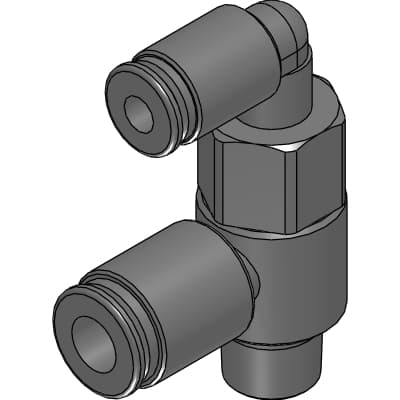

FPV-10A-08
Key Features
- 1Compact and lightweight design, 75% smaller and 50% lighter than conventional models.
- 2Brass electroless nickel plating for durability and resistance to corrosion.
- 3One-touch couplings for easy connection and disconnection.
- 4Effective sectional area of 17 mm², suitable for various pneumatic applications.
- 5Variety of bore sizes available, from M5 to R1/2, enabling direct cylinder installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | FPV | Port size | 10A: R3/8 |
| Applicable tube O.D. | 08: φ8 | A | φ16.3 |
| B | φ8 | C | 29.4 |
| D | 19 |
Specifications may be subject to change without notice
